The LF chassis



LF Chassis module

Low kerb weight put the LF chassis modules at the top of its class. With its modern, strong and light chassis, DAF does not compromise on robustness and flexibility.

Fully optimised suspension

The LF chassis offers an extremely comfortable driving experience. The front suspension is fully optimised to offer the perfect balance between damping, lateral stability and stiffness. And its unsurpassed manoeuvrability is due to the fact that it has the smallest turning cycle in this segment.

Driveline excellence

With a unique choise of engines, transmissions and rear axles there is an optimised solution for every application. Whichever choise you make, highest reliability and fuel efficiency, excellent performance, long service life and low emissions are standard.

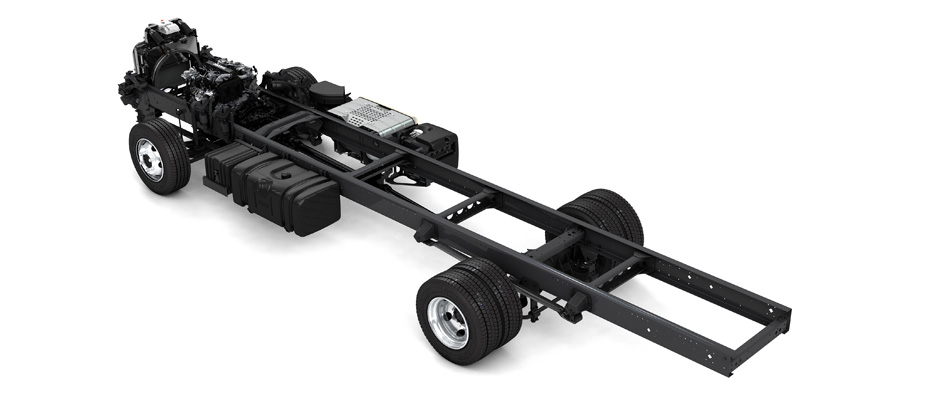

DAF-LF-Chassis-Module-75t12t-for-coach-bus-940


Specs:

Driveline

  • PACCAR PX-5 and PX-7 engine
  • Emissions Euro 6(d) and Euro 5
  • Engine output 112 – 217 kW (150 – 290hp)
  • Optional cold-start system for climates below -12°C
  • 6 speed manual gearbox or 6-speed AS Tronic
  • Optional heated moisture separator
  • Optional mechanical differential lock
  • Optional ASR



Brake system

  • Exhaust brake
  • Electronic brake system (EBS)
  • Ventilated disc brakes front and rear



Safety

  • Optional Vehicle Stability Control (VSC)
  • Optional Adaptive Cruise Control (ACC) with forward collision warning (FCW)
  • Optional Advanced Emergency Braking System (AEBS)
  • Optional Lane Departure Warning System (LDWS) (prepared)
  • Optional reverse warning (prepared)



Suspension and axles

  • Parabolic front suspension
  • Optional air suspended, single reduction rear axle




Chassis

  • Wide range of wheelbase / rear overhang combinations
  • GVW 8t, 10t, 12t, 14t, 16t and 19t
  • Exhaust pipe variants RH and LH
  • 80-A alternator, 2x 125 Ah batteries
  • Optional 100-A alternator and 2x 175Ah batteries
  • Plastic fuel tank 110, 155 and 185 litres
  • AdBlue tank 25 or 50 litres
  • Low level air intake
  • Hole pattern for body attachment



Body and body preparations

  • Application connector chassis
  • Optional BAM1
  • Optional bodybuilders module



Installation components

  • Steering column, pedals, wiring, electronic units



Homologation

  • Stage 1 homologation by Coach/Bus OEM

Warranty

  • Optional DAF MultiSupport Warranty Plus – up to 3 years for drive line or complete chassis module, limited or unlimited mileage
